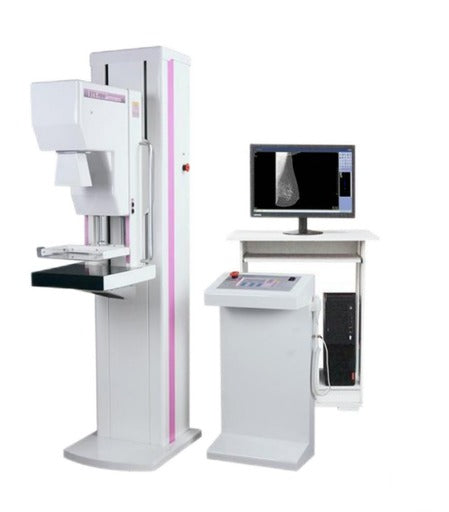

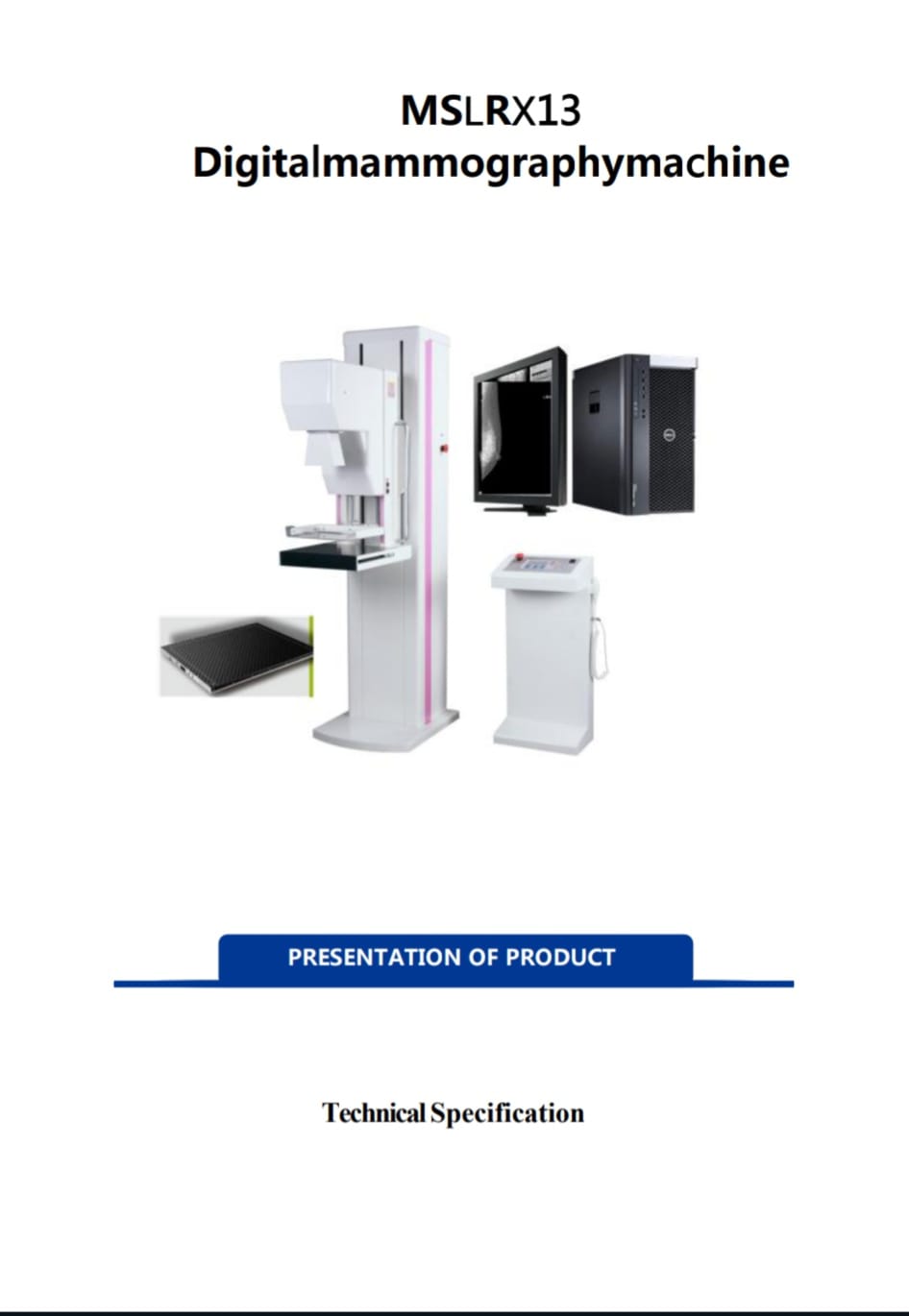

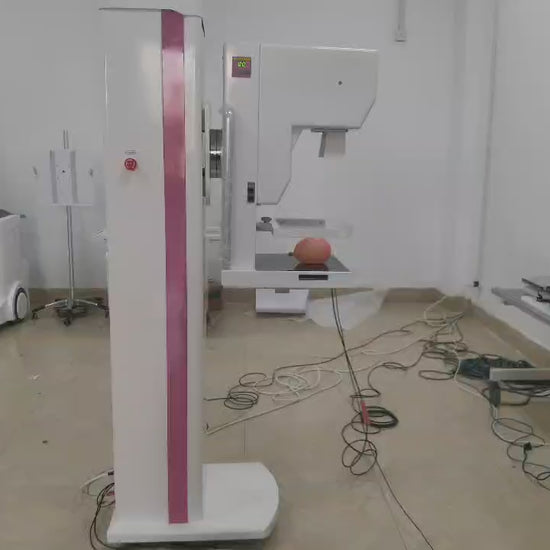

MSLRX13 Digital Mammography System – High Frequency 6kW Breast Imaging Unit with Flat Panel Detector

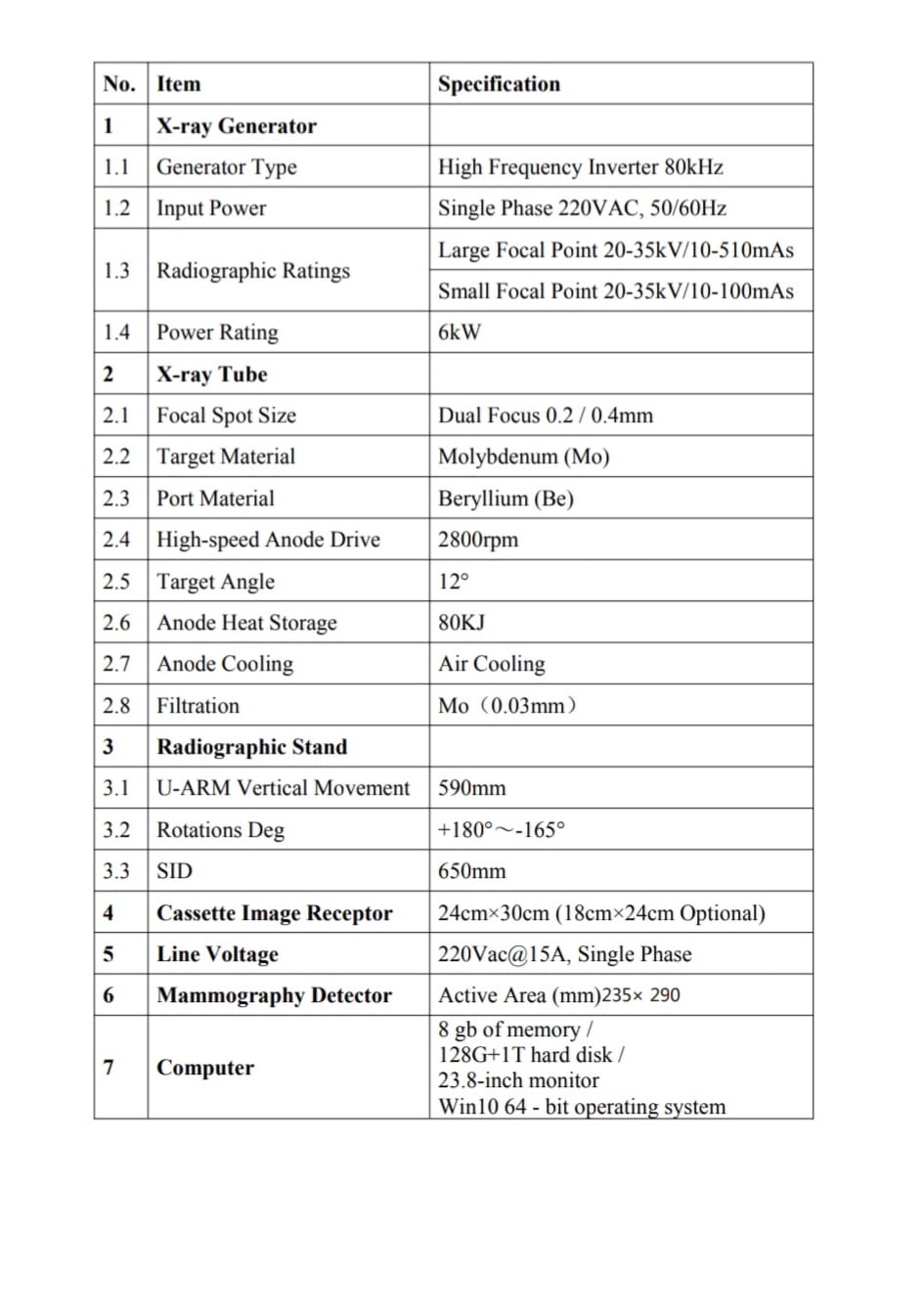

High Frequency Inverter Generator 80kHz
• Generator Power 6 kW

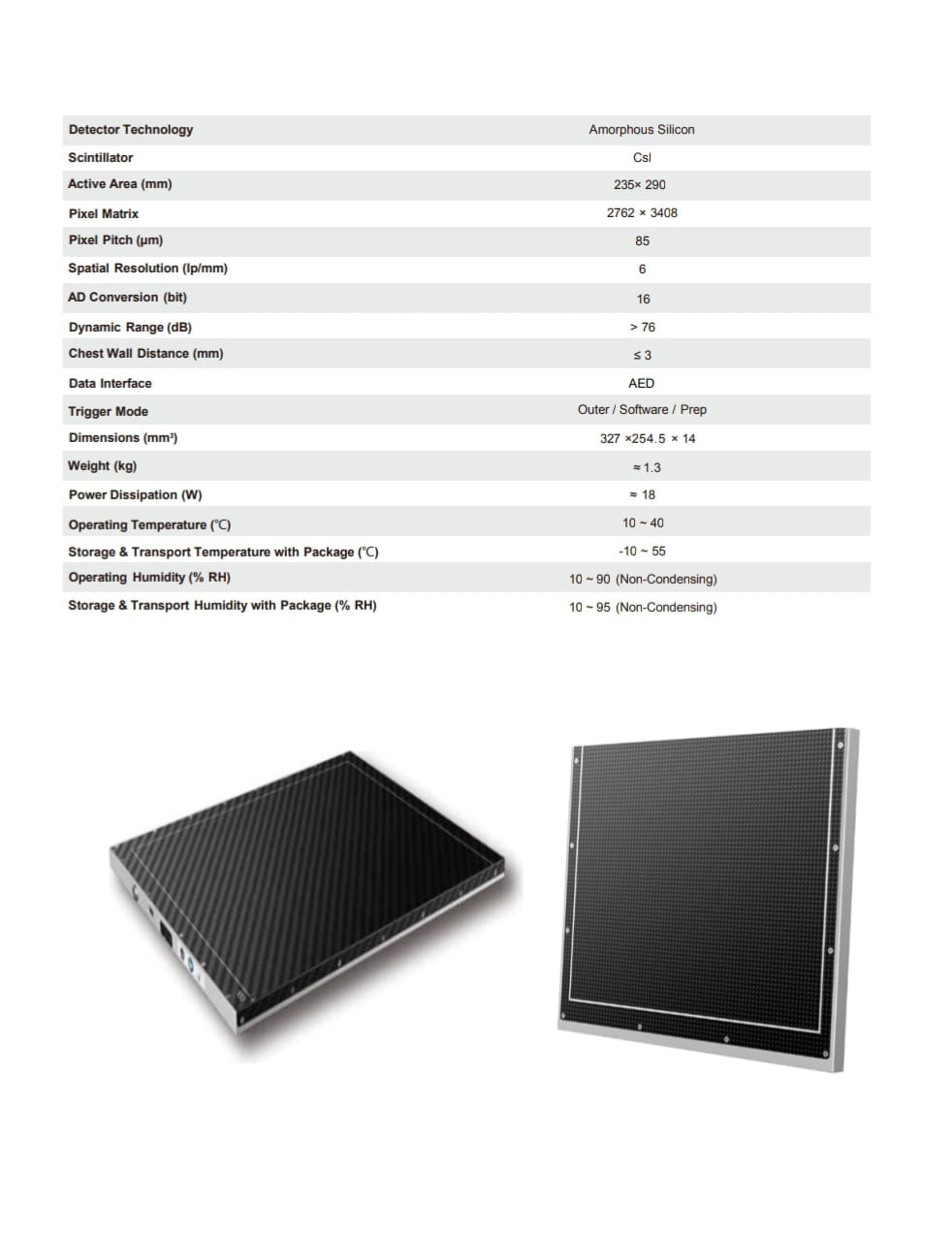

• Digital Flat Panel Detector Amorphous Silicon (a-Si)
• Detector Active Area 235 × 290 mm
• Pixel Matrix 2762 × 3408
• Pixel Pitch 85 μm
• Spatial Resolution 6 lp/mm
• 16-bit A/D Conversion for high image quality
• Dynamic Range >76 dB
• Dual Focus X-ray Tube 0.2 / 0.4 mm
• Molybdenum Target with Beryllium window
• Anode Heat Capacity 80 kJ
• High-speed rotating anode 2800 rpm

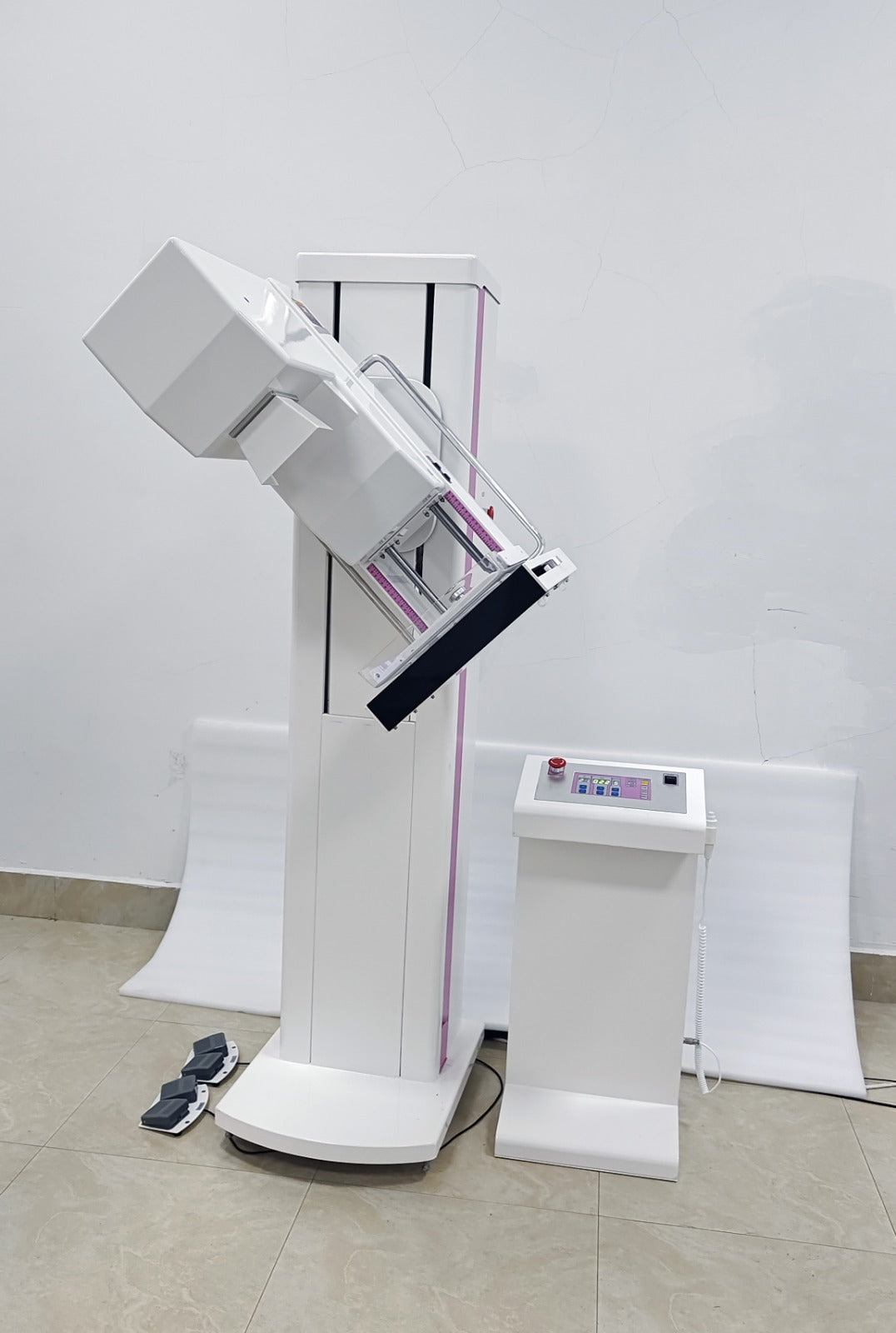

• U-Arm Vertical Movement 590 mm
• Rotation Range +180° to −165°
• SID 650 mm
• Cassette Size 24 × 30 cm (18 × 24 cm optional)

Workstation

• Medical Computer System
• 8 GB RAM
• 128 GB SSD + 1 TB HDD
• 23.8” Medical Monitor
• Windows 10 64-bit Operating System
